| Part No. | Max. rail lengths | a | C4 | A3 | C5=C6 | h | h1 | K1* | ly | lz | Rail weight | Price / m | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [L max.] | Min. | max. | [mm2] | [mm2] | [g/m] | |||||||||
| NS-01-27 | 3000 | 27 | 60 | 0 | 20 | 49,5 | 9 | 1,1 | M4 | 6524 | 588 | 290 | 49,09 EUR | |
| NS-01-27-UNGEBOHRT | 3000 | 27 | 0 | 0 | 9 | 1,1 | 0 | 6524 | 588 | 290 | 44,68 EUR | |||
| NS-01-27-AR | 3000 | 27 | 60 | 0 | 20 | 49,5 | 9 | 1,1 | M4 | 6524 | 588 | 290 | 58,92 EUR | |
For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head
| Order no. | Designation | Weight of carriage | ||
|---|---|---|---|---|
| [g] | ||||

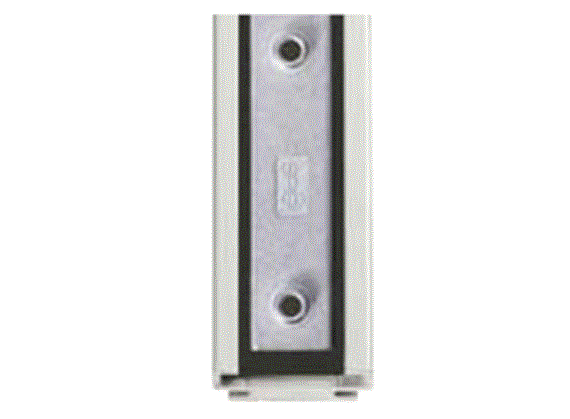

| NW-12-27-80-LLZ | Carriage, floating bearing z-direction | 25 | 14,34 EUR | |
| NW-12-27-80-LLY | Carriage, floating bearing y-direction | 25 | 14,34 EUR | |
| NW-12-27-80-LLYZ | Carriage, floating bearing y- und z-direction | 25 | 14,34 EUR |
| Part No. | H | A | C | C1 | C2 | H2 | K | K3 | Spmin. | DpØmin. | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ±0,35 | [g/m] | ||||||||||||||
| NW-12-27-80-LLZ | 9,5 | 14 | 80 | 76 | 60 | 0 | 0 | M4 | 5 | 6,5 | 25 | 14,34 EUR | |||
| NW-12-27-80-LLY | 9,5 | 14 | 80 | 76 | 60 | 0 | 0 | M4 | 5 | 6,5 | 25 | 14,34 EUR | |||
| NW-12-27-80-LLYZ | 9,5 | 14 | 80 | 76 | 60 | 0 | 0 | M4 | 5 | 6,5 | 25 | 14,34 EUR |
no floating bearing
2Floating bearing in z-direction
3Floating bearing in y-direction
4Floating bearing in yz-direction
Enter the required number of carriages.
