Connectors

With plug-in connectors, igus® relies on companies that have proven that they can provide the necessary product quality and reliability. From the product range of Intercontec, Harting and Yamaichi, igus® offers industrial plug-in connectors that fulfil demanding requirements.
For industrial applications, the following connector types can be found in the shop:

  • Signal round connector
  • Plug-in connector
  • Combined signal and plug-in connector
  • Connector with plastic or metal clamping ring
  • Protection housing for especially demanding environments
  • Overmoulded plug-in connectors
  • M12 and M23 plug-in connectors

Number of products: 215

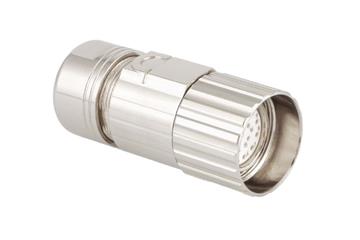

Standard connector, series A, M23 signal plugs

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Female crimp
  • Plug design: Signal connector
18.71 EUR/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

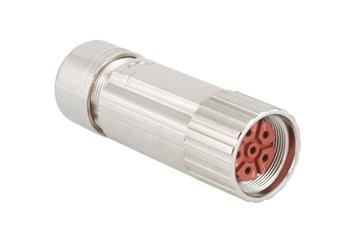

Standard connector series B, M23 power connector

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
35.40 EUR/Pc.
3 items, thereof ready for shipping from Germany:
3 in 24-48 hours
To the product page

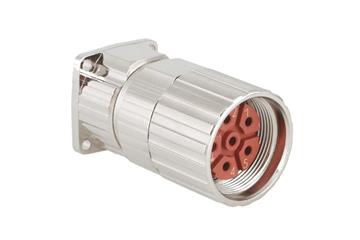

Standard connector, series B, M23 standard feed-through with coupling nut

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
51.80 EUR/Pc.
3 items, thereof ready for shipping from Germany:
3 in 24-48 hours
To the product page

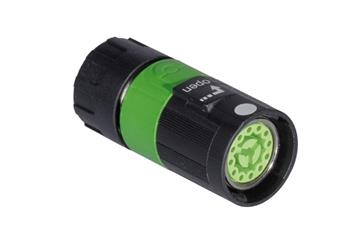

Series 615 signal connector, 12-pole with plastic clamping ring

  • Material: Zinc die-casting,/brass, nickel-plated and plastic coated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: PA modif., 30% Gf.
  • Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
  • Contacts: Brass, gold-plated
  • Seal: FPM / EPDM
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Female crimp
32.27 EUR/Pc.
3 items, thereof ready for shipping from Germany:
3 in 24-48 hours
To the product page

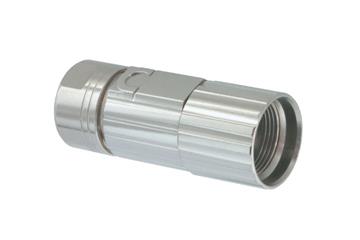

Standard connector, series 617, M17 signal plugs

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM
  • Insulation body: PBT, UL 94/V0
  • Contact type: Crimp bush, slotted
38.34 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

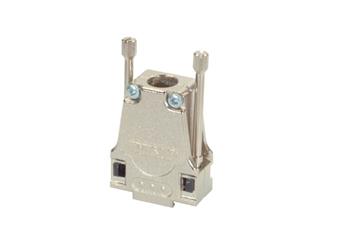

Signal plug-in connector SUB-D straight

  • Design: Standard connector
  • Material: Zinc die-casting, nickel plated
  • Insulation body: Glass fibre reinforced polyester
  • Contacts: Copper alloy, flash gold-plated
  • Max. continuous nominal current: 5 A
  • Testing voltage: (L-L) 1200 V
  • Contact resistance: 1016 Ω/cm
  • Insertion cycles: 50
  • Temperature range: -35 °C to +100 °C
8.49 EUR/Pc.
4 items, thereof ready for shipping from Germany:
4 in 24-48 hours
To the product page

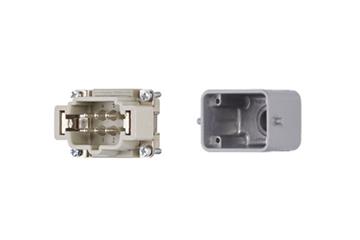

Harting connector set, pin design

  • Han® 6B connector housing, straight cable entry
  • M20 cable entry
25.91 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

Harting connector set, pin design

  • Han® 6B connector housing, side cable entry
  • M20 cable entry
25.33 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

Harting connector set, pin design

  • Han® 10B connector housing, straight cable entry
  • M25 cable entry
38.55 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

Harting connector set, pin design

  • Han® 10B connector housing, side cable entry
  • M25 cable entry
36.50 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

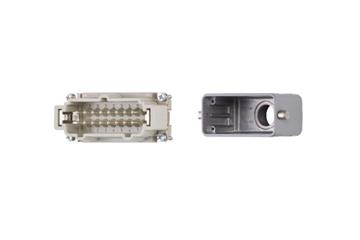

Harting connector set, pin design

  • Han® 16B connector housing, straight cable entry
  • M25 cable entry
40.05 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

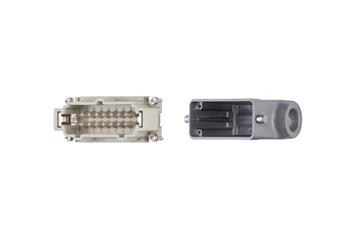

Harting connector set, pin design

  • Han® 16B connector housing, side cable entry
  • M25 cable entry
38.30 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

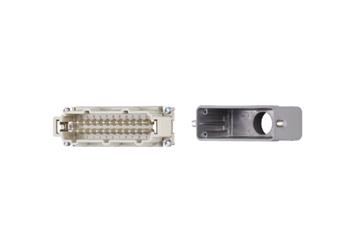

Harting connector set, pin design

  • Han® 24B connector housing, straight cable entry
  • M32 cable entry
49.66 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

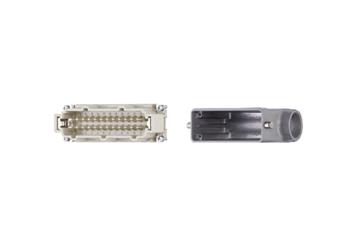

Harting connector set, pin design

  • Han® 24B connector housing, angled cable entry
  • M32 cable entry
52.62 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

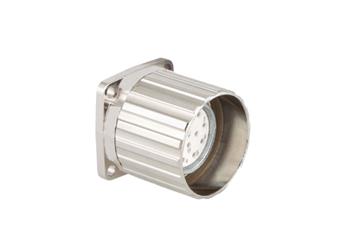

Standard connector, series A, M23 standard feed-through with coupling nut

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp contact bush, slotted
  • Plug design: Bulkhead connector with union nut
17.44 EUR/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page
