Linear modules drylin SHTC Heavy Duty

shtc

The largest and strongest versions of the SHTC linear modules are the heavy-duty variants in installation sizes 40 and 50. Due to robust hard-chrome steel shafts and self-locking trapezoidal threads, stroke lengths of up to 1,500mm can be achieved, with a radial static load capacity of up to 25,000N. The design with short carriages makes the large linear modules ideal for a multi-carriage system.

Special specifications:

  • For heavy loads of up to 25,000N
  • Maximum stroke length of 1,500mm
  • Self-locking trapezoidal thread
  • Two installation sizes

The sizes of the SHTC Heavy Duty series

Linear module drylin SHTC-40

SHTC-40

  • Carriage length: 70mm
  • Max. stroke length: 1,500mm
  • Shaft ø: 40mm
  • For loads of up to 16,000N
Linear module drylin SHTC-50

SHTC-50

  • Carriage length: 80mm
  • Max. stroke length: 1,500mm
  • Shaft ø: 50mm
  • For loads of up to 25,000N
Technical data
Technical options
Technical accessories

Also discover the SLR series

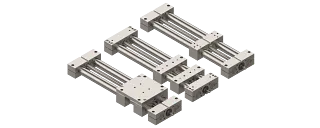

SLR

The new standard for high loads

  • Linear module for high loads
  • Various carriage designs
  • Simple alignment via dowel pins, without additional bottom clamps
  • Wide range of connection options
  • Split, replaceable lead screw nut
  • 100% lubrication-free
SLR in the online shop

Configure an individual SHT linear module online

Online linear module configuration
  • Find and order the right linear module with just a few clicks
  • Make your entries and select the suitable product
  • Choose optional accessories
  • Add to shopping cart and order or request online
  • Download parts list as a PDF
Configure and order an SHTC linear module
self-locking

Self-locking

  • Trapezoidal thread for high positioning accuracy
  • Holds loads in place
  • Prevents unintentional adjustment
  • Acts as a brake when used vertically
Icon_high loads

High loads

  • High static load capacity
  • SHTC-40: 16,000N
  • SHTC-50: 25,000N
several-carriages-sht-slide

With several carriages

  • With short carriage
  • Right/left opposite drive
  • High support due carriages that move freely

Further products and variants

Stainless steel drylin SHT linear module

SHT stainless-steel linear modules

  • Resistant to chemicals
  • Extremely robust and corrosion-free
  • FDA-compliant version available
Stainless steel linear modules
igus drylin SHT XY table

drylin XY tables

  • High precision
  • 100% lubrication-free
  • Precise alignment due to CNC production
To the XY tables
igus stepper motor

drylin E stepper motors

  • Suitable NEMA stepper motors
  • Further accessories (initiators, motor cables)
  • Fully assembled
Online shop for stepper motors

drylin® linear modules with a single click ...

igus linear modules shop

... order harnessed linear modules with stroke lengths of 250 and 500mm from the online shop.

  • With lead screw or toothed belt drive
  • Each system is available in two defined stroke lengths
  • Flexible with drive pin for manual and electric operation Ready to install with lead screw clamp, position indicator and hand wheel for fast, reproducible adjustments
  • No time-consuming searching and assembling
  • Reduced design effort as PDF and CAD files can be downloaded in the online shop
To the linear module shop
