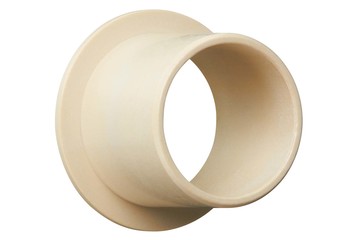

iglidur® H2, sleeve bearing with flange, mm

  • Low-cost, for high temperatures
  • Can be used underwater
  • Resistant to chemicals
  • For high temperatures
Product description
iglidur® H2 | Low-cost, for high temperatures

  • Can be used underwater
  • Cost-effective
  • Chemical resistance
  • For high temperatures
  • Lubrication- and maintenance-free
In applications where iglidur® H2 bearings are used, economical aspects are in focus. It is the first time that it is possible to offer such a high-performance bearing for large volume applications with these technical advantages at such a low price: Temperatures up to +200 °C, permitted surface pressure up to 110 N/mm2, and excellent chemical resistance. iglidur® H2 bearings are self-lubricating and suitable for all type of movement.

Typical application areas

Automotive

You will find plenty of additional application areas here Industry solutions


When to use it?
  • For underwater use
  • If an economical bearing is required for use at high temperatures
  • For applications with fuels, oils, etc.
  • Chemical resistance
When not to use it?
Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining

Certificates and standards
RoHS compliant
According to 2011/65/EU (RoHS 2)
