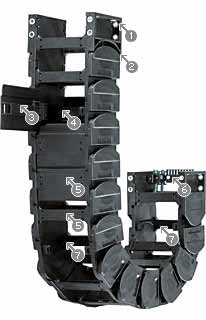

1. KMA - mounting brackets2. Fixed/pivoting mounting brackets available3. R98: Lid can be opened and removed4. R98: Shelves can be removed5. Tube and chain can be combined6. Strain relief elements can be integrated7. 50/51: Crossbars removable along both sides
Available inner widths: 50 to 600 mmAvailable bend radii: 150 to 1000 mmPitch: 91 mm/link = 11 links/m
For new designs, we recommend the improved e-chain® series H4.80 from the igus® E4.1 system.+25% more unsupported length, higher stability and tensile strength, same dimensions and connection dimensions
Series 51 is available from stock in limited numbers. Product support and storage are limited as of 2012.
For questions, please refer to your igus® contact person. Thank you for your understanding
to the H4.80 series
* The required clearance height is HF = H + 60mm (with 3kg/m fill weight), this should be taken into account for all application types.Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving end, B=Fixed endPitch: 91 mm per linkChain links per m: 11Travel: SChain length = S/2 + K
Unsupported length versus fill weightX axis: Unsupported length in m FLB/FLGY axis: Fill weight in kg/mLower scale: Travel S in mFLB = Unsupported with permissible sagFLG = Unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Modular interior separation available
3 mounting bracket variants
Variable widths through extension links
42 widths and 11 bend radii
Practical tools for opening and closing of e- chains® of series E4
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Separators can be fitted anywhere in the e-chain® cross section. The standard separator Part no. 501 offers secure standing ability with its wide base, also for large cables/hoses. The separators can be used both on e-chains® as well as on energy tubes from the series listed above. Also available for the applications with e-chains® (not tubes): Locking separator part. no. 504 with increased holding strength. This separator is used in applications with very high loads. Asymmetrical locking separator, part no. 508. This separator is used in applications with very high humidity, e.g. in compost plants. Opening the e-chain® is more difficult when using the locking separators. All separators can be moved and can be fixed in position (e.g. for side-mounted applications, not for tubes) by spacers.
With the various elements of the interior separation, the e-chains® and energy tubes can be divided both vertically and horizontally. Side plates and shelves allow a flexible separation structure. Shelves of various widths can be arranged in steps of 7 mm on 11 levels. You can find recommendations for assignment in the "Design" chapter. For installing the open slotted separators, the top and bottom slots cannot be used for shelves.
KMA - pivoting
KMA - locking
Steel guide troughs
1. Guide trough (blue)2. Glide bar (black)3. Installation set (red)4. Individual bracket without C-profile5. Profile rail length
+ Easy assembly using installation sets+ 2-part design - configurable from chain width+ Very stable+ cost-effective+ large selection
Guide trough without glide bars, Part No. 96.30, guide trough with glide bars Part No. 96.31
Installation sets, Part No. 96.50. XX
